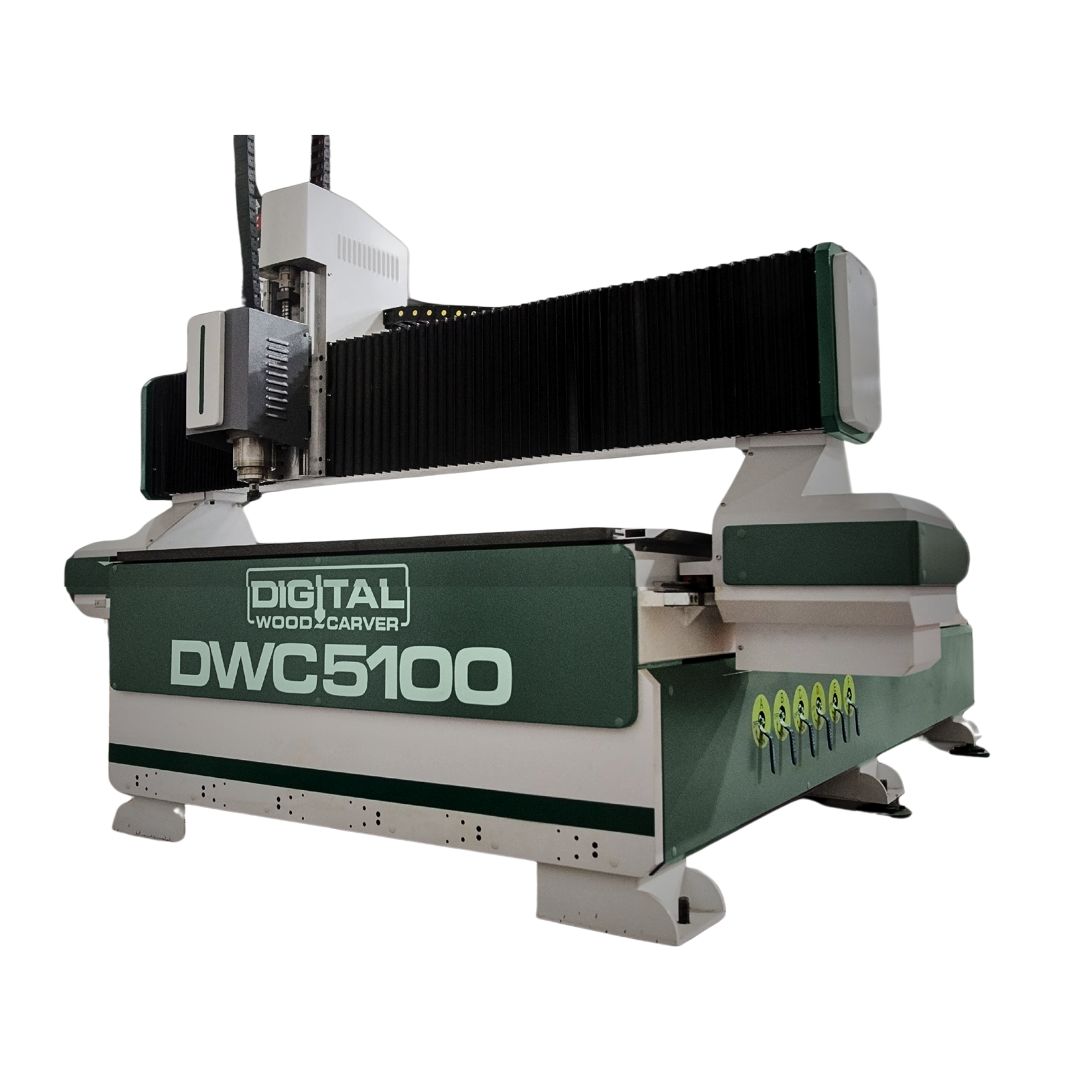

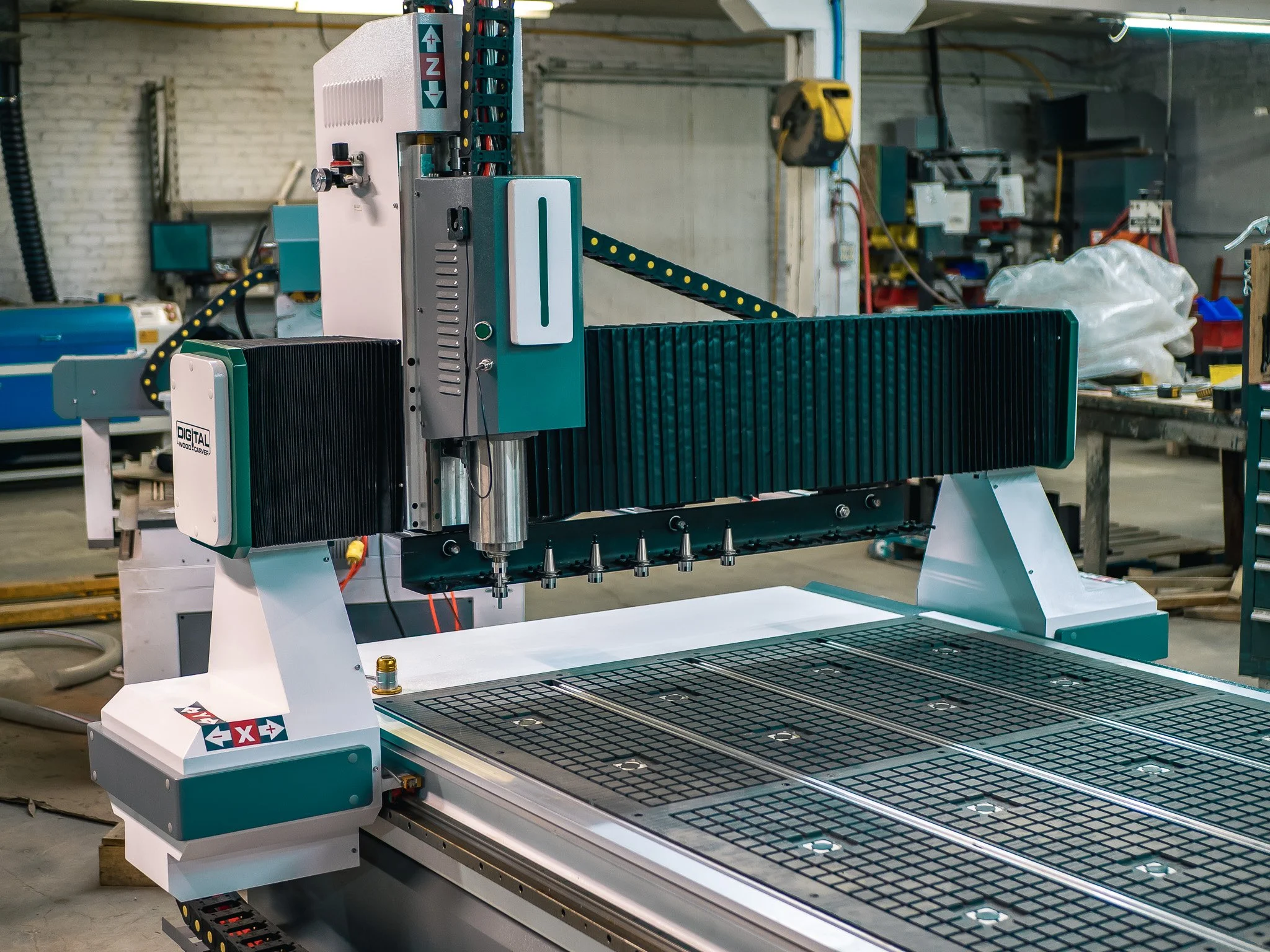

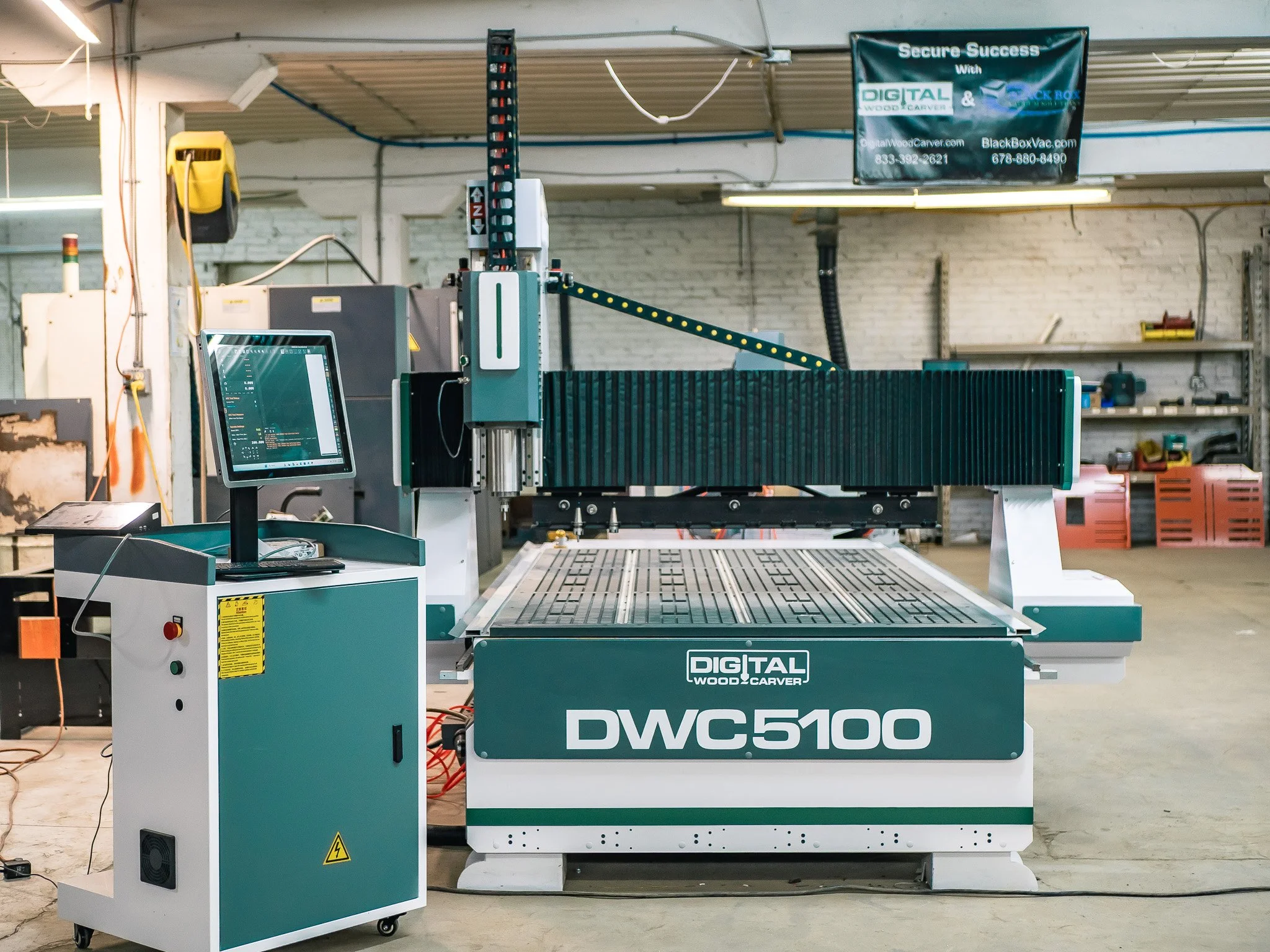

DWC5100 Commercial CNC Router
Handle Full Sheets of Plywood with Precision and Power
The Digital Wood Carver DWC5100 is a true commercial CNC machine, built to handle full 4x8 sheet material with professional performance and reliability. With a carving area of 96" x 48" and upgraded components like closed-loop motors, ball screw drive, and planetary gearboxes, this machine is engineered for fast-paced, high-volume shops that still want the backing of Digital Wood Carver's support team.
Big Projects, Built-In Precision
Our 48" x 96" commercial CNC has a working area of 51.2" x 98.4", giving you full sheet coverage plus a bit of working clearance. With 8 inches of Z travel, it handles thick materials or stacked jobs with ease.

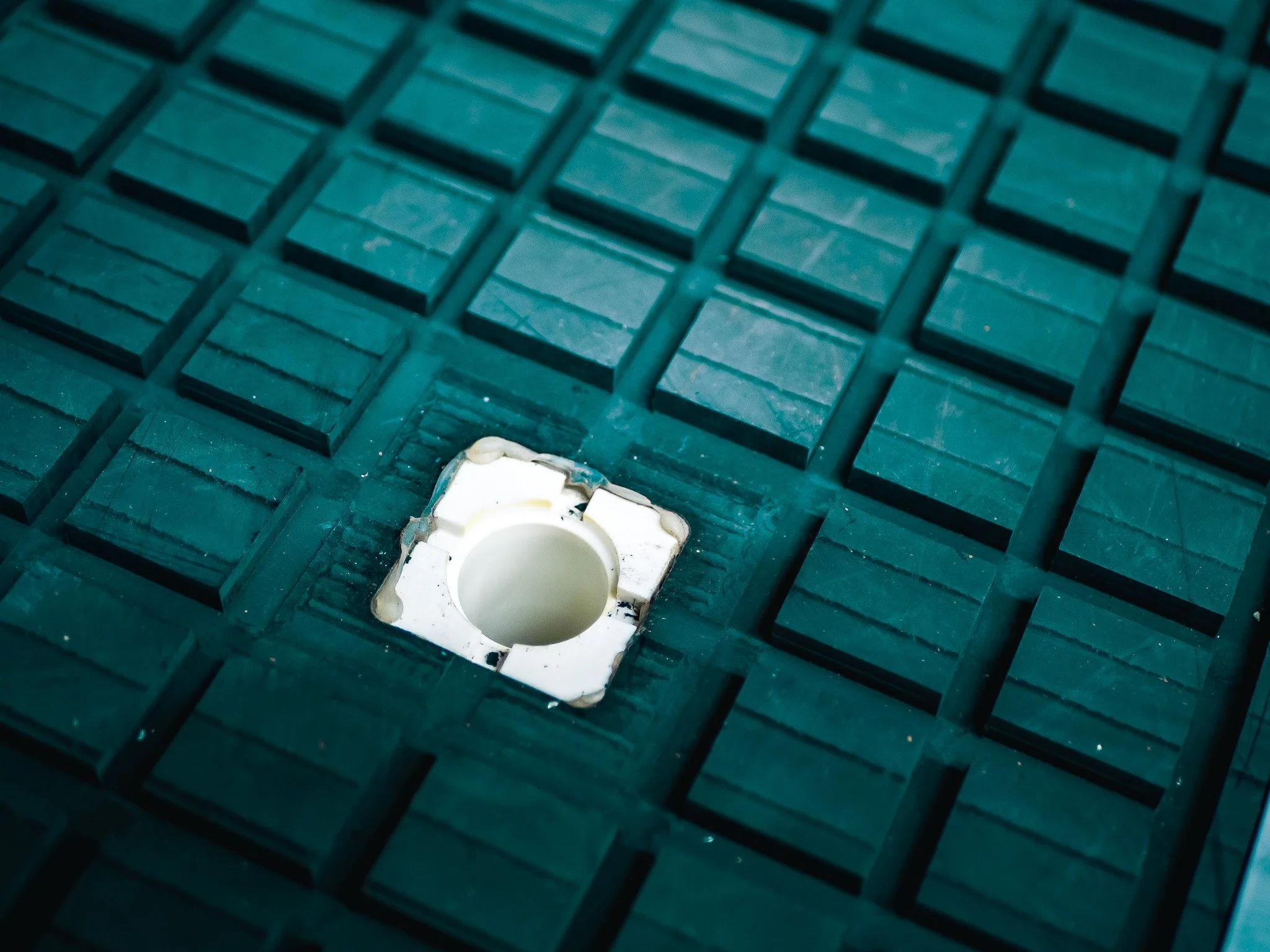

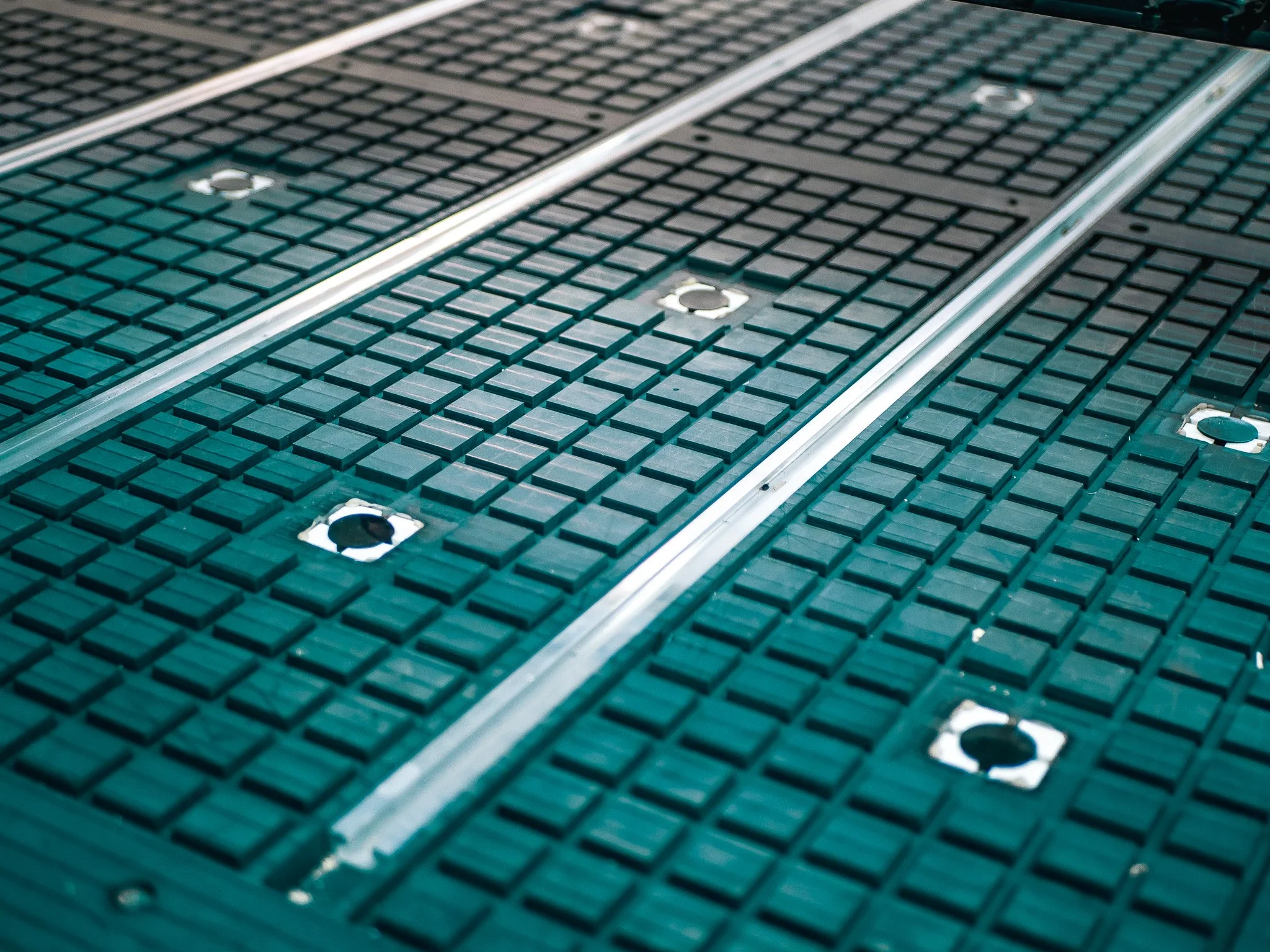

The table includes 5 integrated T-slots and a vacuum hold-down system, giving you flexible, secure workholding for large sheet stock, boards, and custom setups.
MUST REQUEST A QUOTE OR CALL FOR ORDERS & SHIPPING QUOTES
Gallery
Specs
Machine Size & Motion
X, Y Working Area: 51.2" x 98.4"
Z Travel: ~8"
Feeding Height: 120 mm (~4.625")
Drive System:
X/Y: Helical rack and pinion
Z: Ball screw
Max Rapid Speed: 550 in/min (14 m/min)
Max Working Speed: 450 in/min (12 m/min)
Working Accuracy: 0.001" (0.01 mm)
Repositioning Accuracy: 0.0025" (0.05 mm)
Spindle & Motor System

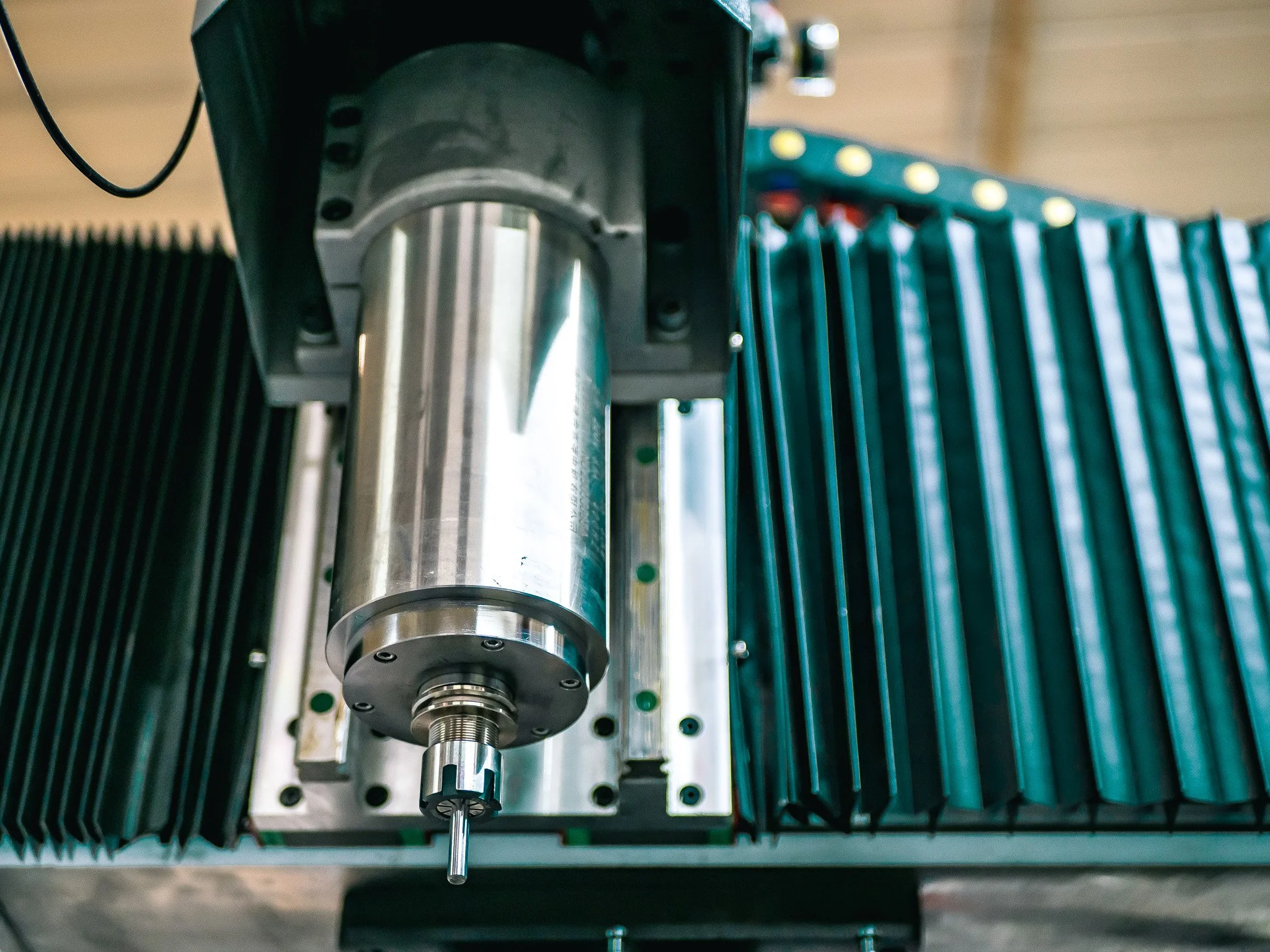

Spindle: 3.2 kW (4.25 HP) water-cooled
Collet Type: ER20
Spindle Speed: 0–24,000 RPM (with VFD)
Stepper Motors: Closed-loop hybrid motors (1142 oz-in torque)
Gearbox: High-precision 5:1 planetary gearboxes
Control, Power & Safety

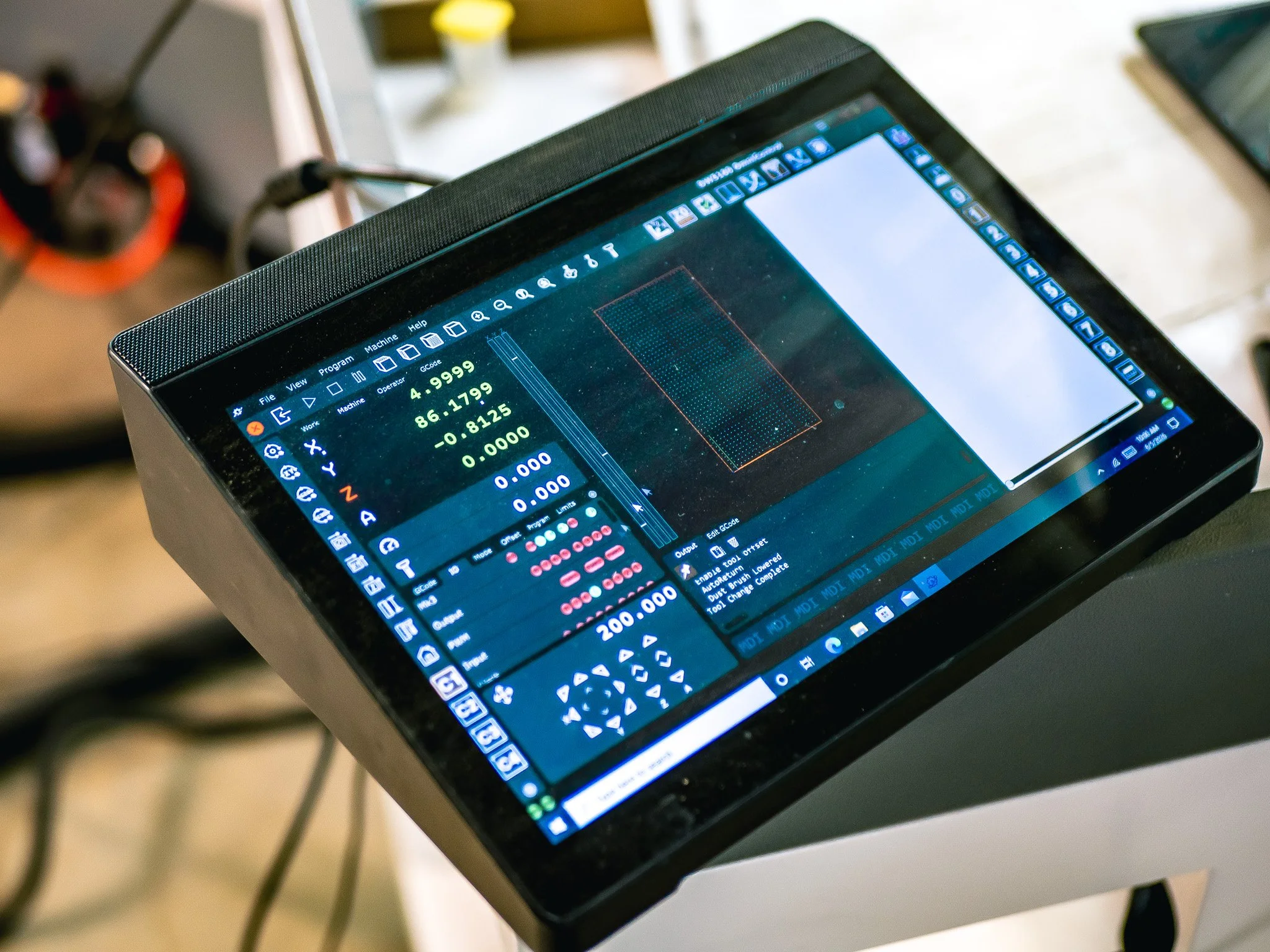

Motion Software: DWC Omni Control powered by PlanetCNC TNG
Design Software: Vectric (VCarve Pro or Aspire – sold separately)
Controller: USB CNC Motion Controller
Voltage: 220V AC, 50/60 Hz, Single Phase
System Power: 4000W
Safety:
X, Y, Z limit switches
Emergency stop

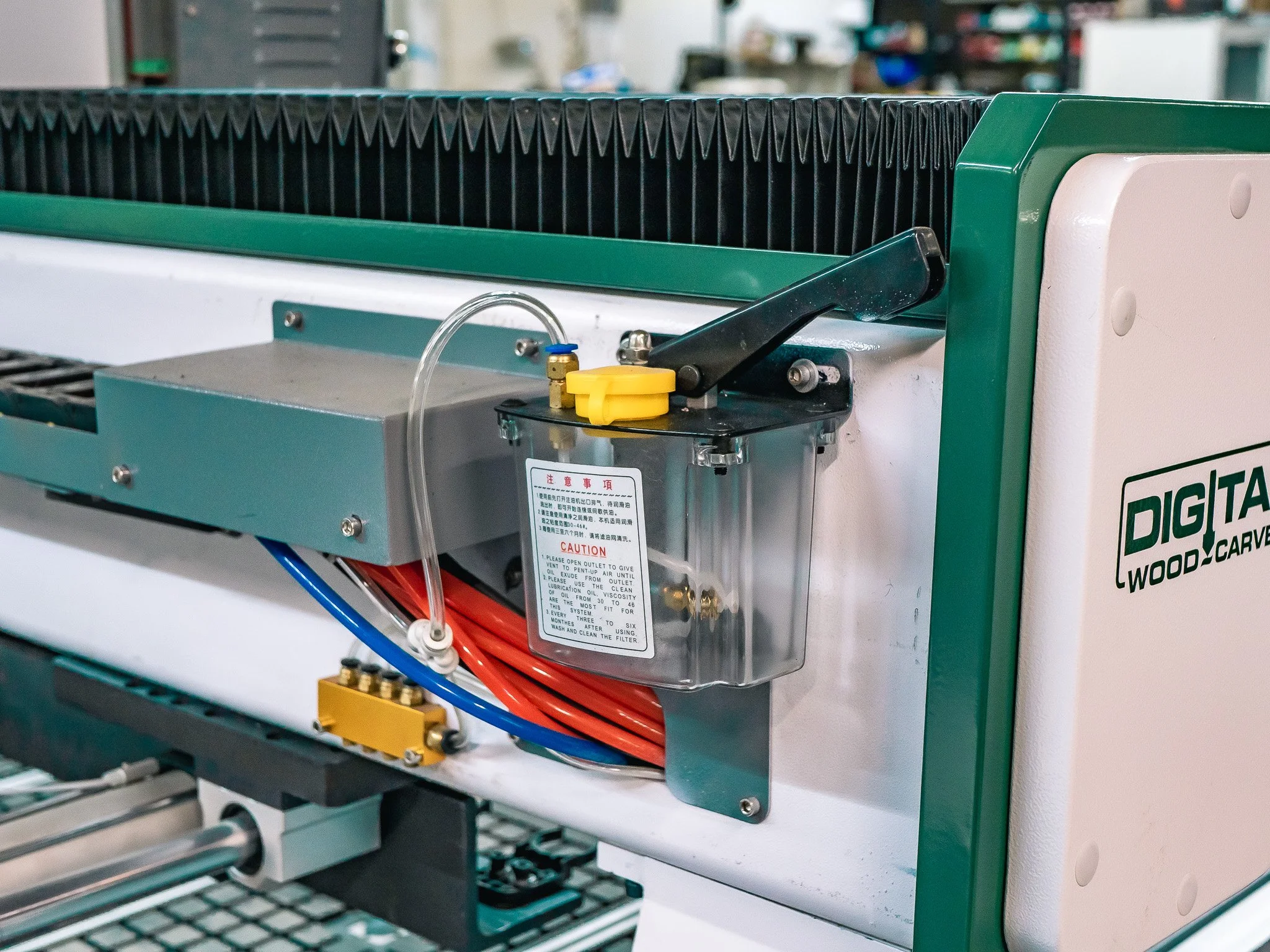

Manual way oiler

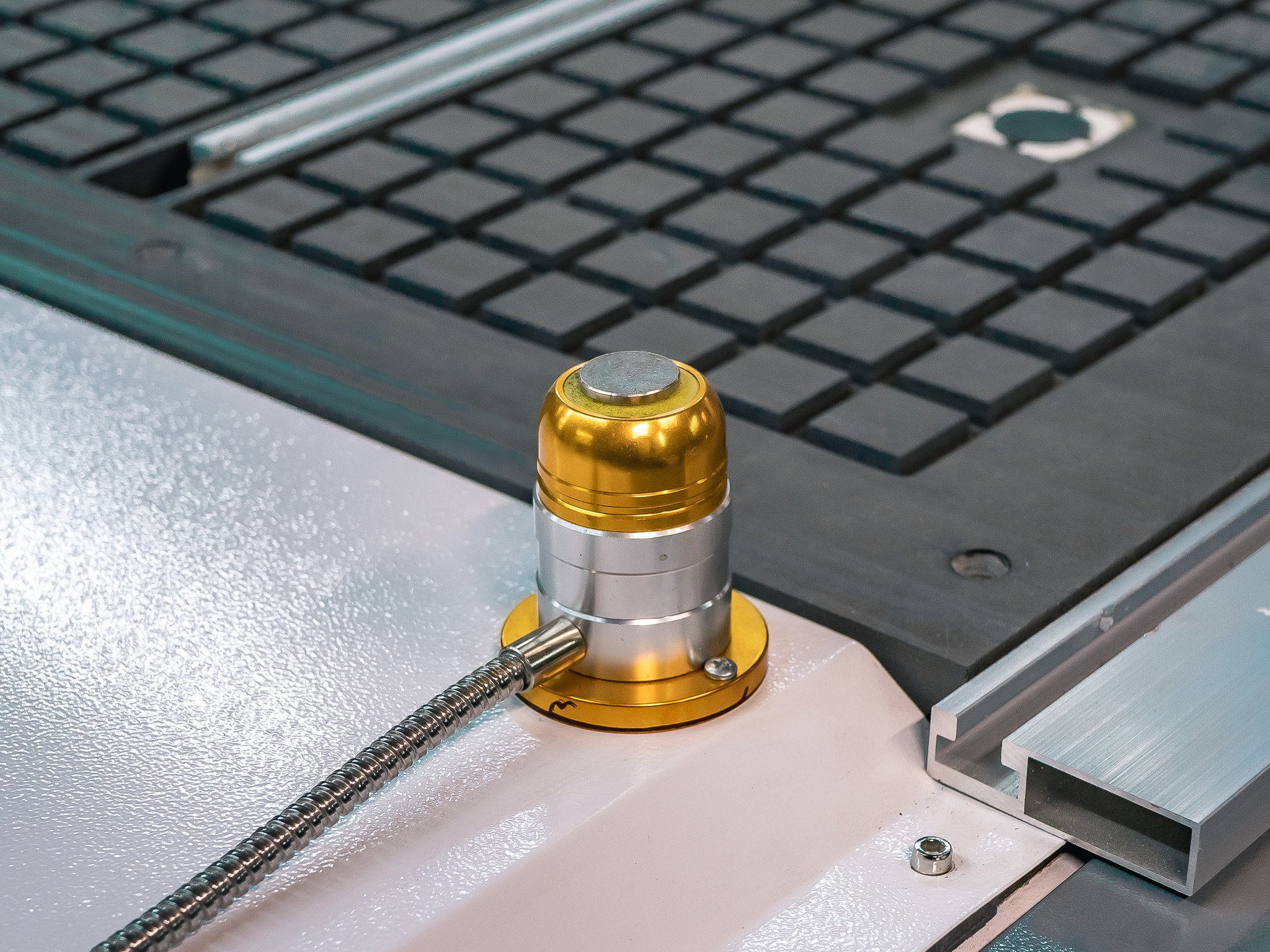

Z-height probe support (probe sold separately)
Table & Workholding
Table Type: T-slot and vacuum combo
T-Tracks: 5 integrated T-slots
Workholding: Compatible with both manual clamps and vacuum hold-down
Optional: 8-tool ISO30 Automatic Tool Changer (factory-installed only)
Optional: Rotary 4th Axis Attachment
4th Axis Now Available
Add rotary carving capability to your DWC5100 with the new Rotary 4th Axis Attachment — perfect for columns, rounded profiles, and turned projects.
Retail Price: $1,000

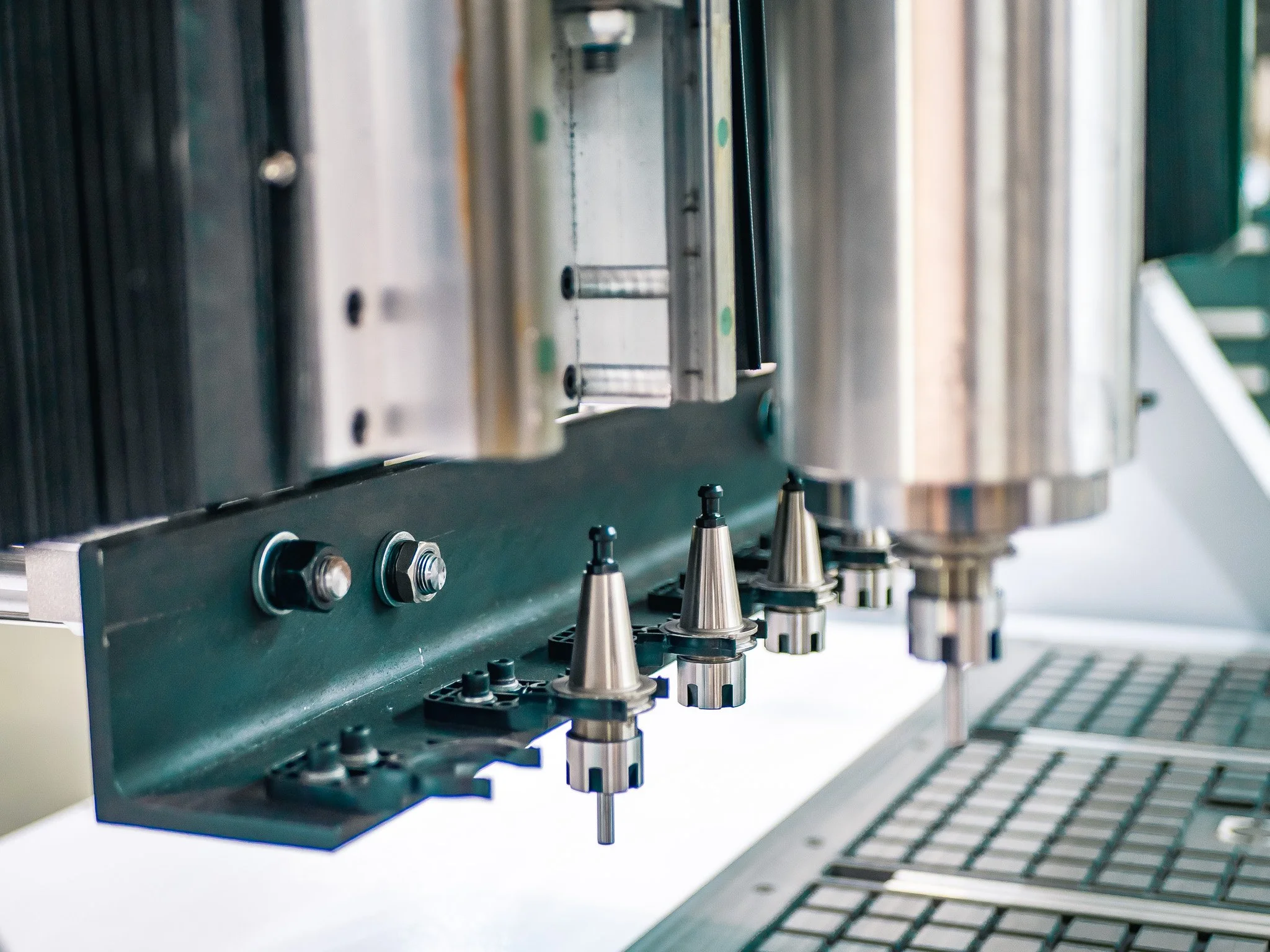

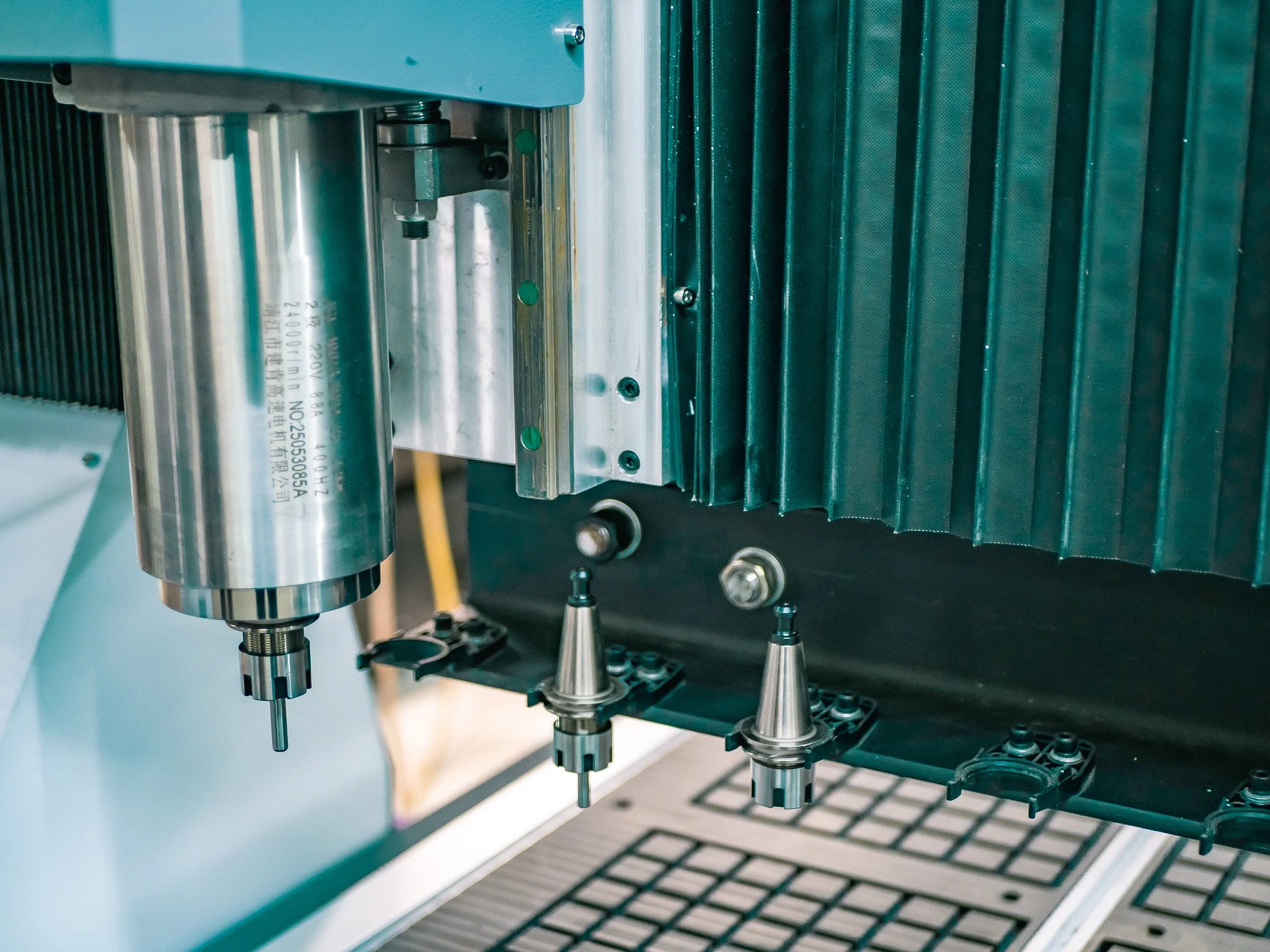

Automatic Tool Changer (ATC)
Boost your productivity with the available Automatic Tool Changer (ATC) upgrade.
Holds up to 8 ISO30 tool holders
Fully automated tool swaps between cutting operations
Must be installed during manufacturing (not retrofittable)
Add-on price: $5,500
Available with call-in orders only!
Watch It Run
No fancy editing…. just the DWC5100 in operation.
Made with a DWC5100
